HP DL360 G3 FAN 조절

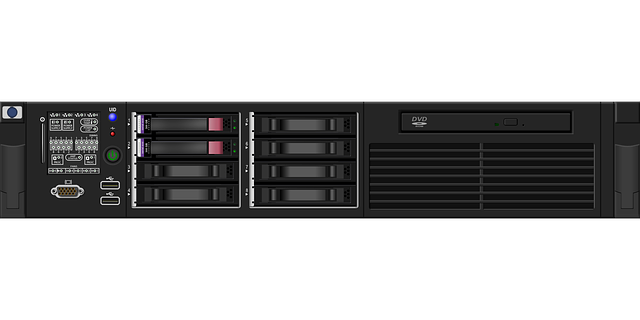

본문내용과는 다른 모델의 이미지

Image by OpenClipart-Vectors from Pixabay



지금 G10 모델이 주력으로 사용되고 있으니 HP DL360 G3 이면 참 오래된 모델이다.



아무튼,

HP DL360 G3 FAN 조절

서버 온도가 일시적으로 올라가서 팬이 돌기 시작하면 온도가 내려간 다음에도 팬 속도가 줄어들지 않는다.
OS: CentOS 6 (i686)

hp-health rpm 을 설치해 주면 자동으로 조절한다.

다운로드 위치
https://downloads.linux.hpe.com/SDR/repo/mcp/centos/6/i686/9.00/

hp-health-10.50-1826.39.rhel6.i686.rpm
kernel: hpasmd[18121]: segfault at b75a406d ip 08085905 sp bfff7af8 error 7 in hpasmd[8048000+5d000]
kernel: hpwdt 0000:00:05.0: This server does not have an iLO2+ ASIC.
Dec 16 11:22:50 alliveit kernel: ipmi message handler version 39.2
Dec 16 11:22:50 alliveit kernel: IPMI Watchdog: driver initialized
Dec 16 11:22:50 alliveit hpasrd[18152]: Starting with poll 1 and timeout -60
Dec 16 11:22:50 alliveit hpasrd[18152]: Setting the watchdog timer.
Dec 16 11:22:50 alliveit hpasrd[18152]: Found iLO memory at 0xf5f70000.
Dec 16 11:22:50 alliveit hpasrd[18152]: Successfully mapped device.
Dec 16 11:22:50 alliveit hpasrd[18152]: WARNING: Can not open /dev/cpqhealth/casr.
Dec 16 11:22:50 alliveit hpasrd[18152]: #012ERROR: Failed to get ASR enabled state.
Dec 16 11:23:40 alliveit hpasrd[18152]: Stopping the timer.

작동 실패 / iLO chipset이 맞지 않는다고

hp-health-9.0.0.48-46.rhel6.i386.rpm
[root@alliveit src]# rpm -Uvh hp-health-9.0.0.48-46.rhel6.i386.rpm
warning: hp-health-9.0.0.48-46.rhel6.i386.rpm: Header V3 DSA/SHA1 Signature, key ID 2689b887: NOKEY
Preparing...                ########################################### [100%]
   1:hp-health              ########################################### [100%]
Please read the Licence Agreement for this software at

         /opt/hp/hp-health/hp-health.license

By not removing this package, you are accepting the terms
of the "HP Proliant Essentials Software End User License Agreement".
==============================================================================
NOTE: To activate the software contained in this package, you must type:
      /etc/init.d/hp-health start
      /etc/init.d/hp-asrd start
as 'root' user.
==============================================================================
The hp-health RPM has installed successfully.

Dec 16 11:26:41 alliveit setsebool: The allow_ypbind policy boolean was changed to 1 by root
Dec 16 11:27:19 alliveit hpasmd[18258]: ProLiant System Health Monitor loading
Dec 16 11:27:26 alliveit pure-ftpd: (?@63.143.42.250) [INFO] New connection from 63.143.42.250
Dec 16 11:27:26 alliveit pure-ftpd: (?@63.143.42.250) [INFO] Logout.
Dec 16 11:27:31 alliveit kernel: hpwdt 0000:00:05.0: This server does not have an iLO2+ ASIC.
Dec 16 11:27:31 alliveit kernel: ipmi message handler version 39.2
Dec 16 11:27:31 alliveit kernel: IPMI Watchdog: driver initialized
Dec 16 11:27:31 alliveit hpasrd[18314]: Starting with poll 1 and timeout 600
Dec 16 11:27:31 alliveit hpasrd[18314]: Setting the watchdog timer.
Dec 16 11:27:31 alliveit hpasrd[18314]: Found iLO memory at 0xf5f70000.
Dec 16 11:27:31 alliveit hpasrd[18314]: Successfully mapped device.

작동 성공 / 동일하게 chipset이 없다고 나오기는 하나 성공적으로 작동


[root@int9 src]# cat /etc/redhat-release
Fedora Core release 3 (Heidelberg)

https://support.hpe.com/hpsc/swd/public/detail?swItemId=MTX_59a256266fd04b9a93eeeb1f84

[root@int9 src]# rpm -Uvh hp-health-8.1.1-14.rhel4.x86_64.rpm
Preparing...                ########################################### [100%]
   1:hp-health              ########################################### [100%]
==============================================================================
NOTE: In order to activate the software contained in this package, you must
      type '/etc/init.d/hp-health start' as 'root' user.
==============================================================================
The hp-health RPM has installed successfully.

[root@int9 src]# /etc/init.d/hp-health start
   Starting Proliant System Health Monitor (hpasmd):       [  OK  ]

Dec 17 14:10:53 int9 hpasmd[4111]: ProLiant System Health Monitor loading
